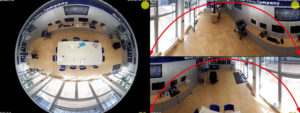

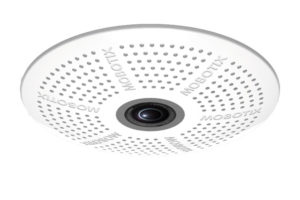

The c25/c26 is our smallest 6MP hemispheric camera and comes with three clamps for easy installation in suspended ceilings like a halogen downlight. Alternatively equipped with a telephoto lens and mounted above a cash box the c25/c26 will provide a very detailed video of the content and allows even reading the serial numbers of the bank notes.
With a diameter of only 12 centimeters/4.7 inches and a weight of approximately 200 grams, the c25/c26 is the smallest and lightest Hemispheric MOBOTIX video complete system yet for ceiling mounting indoors (protection class IP20, 0 to 40 °C/32 to 104 °F). Standard features include a light-sensitive day or night sensor with 6MP Moonlight Technology, a microSD memory card and the latest camera software including MxActivitySensor and the MxAnalytics video analysis tools(person and object counting, heat map display of high-traffic areas). The integrated 6MP Moonlight Technologyfacilitates high-contrast images without motion blur, even in poorly illuminated surroundings.
- Standalone: Full functionality @ zero bandwidth
- Video Sensor: MxActivitySensor reducing false alarms
- Event Recording: Onboard (SD card) & direct to NAS
- MxAnalytics: Heat map & people counting
- Alarm Notification: E-mail, FTP & VoIP (SIP)
- Communication: Two-way audio option
- Power: Standard PoE below 4W
Typical Application Areas For MOBOTIX Indoor Cameras
Indoor applications in retail, supermarkets, public buildings, trade fair and exhibition spaces, hotels and recreation facilities, in residential buildings and for the surveillance of industrial production processes.
| c25 | c25 AUD | |
| Indoors: | IP20, 0 to +40 °C/32 to 104 °F | IP20, 0 to +40 °C/32 to 104 °F |
| Lenses: (35 mm equivalent) |
B016 (180° x 180°) B036 (103° x 77°) |
B016 (180° x 180°) |
| Max. image size: | 6MP (3072×2048) | 6MP (3072×2048) |
| Image sensor: | 1/1.8″ CMOS sensor, 6MP (3072×2048), progressive scan | 1/1.8″ CMOS sensor, 6MP (3072×2048), progressive scan |
| Max. framerate: | 30@HD • 20@FullHD • 8@6MP | 30@HD • 20@FullHD • 8@6MP |
| Sensitivity: | Color 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s) B/W: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s) |
Color 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s) B/W: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s) |
| Interfaces: | Ethernet (MxRJ45), MiniUSB | Ethernet (MxRJ45), MiniUSB |
| Internal DVR: | MicroSD slot (4GB card pre-installed) | MicroSD slot (4GB card pre-installed) |
| Audio/Telephony: | Audio optional via ExtIO | With audio package (HD audio, integrated microphone, speaker) |
| Power supply: | Power over Ethernet (PoE nach IEEE802.3af): PoE class variable (2/3), according to operating mode; power consumption typ. 4 W |
Power over Ethernet (PoE nach IEEE802.3af): PoE class variable (2/3), according to operating mode; power consumption typ. 4 W |
| Software functions: | Intelligent video analysis • digital zoom • programmmabale exposure windows • single image recording • Full Featured Recording (MxFFS Archive, Continous Recoring, Full Image Recording) • Time and event driven • Week programs incl. public holidays • web functions • Logo generator • Linked event logic • Master/Slave activation • several time-driven privacy zones • Remote activation • program interface/HTTPAPI |
Intelligent video analysis • digital zoom • programmmabale exposure windows • single image recording • Full Featured Recording (MxFFS Archive, Continous Recoring, Full Image Recording) • Time and event driven • Week programs incl. public holidays • web functions • Logo generator • Linked event logic • Master/Slave activation • several time-driven privacy zones • Remote activation • program interface/HTTPAPI |
| Arming • Triggering: | 365-day schedule • multiple events | 365-day schedule • multiple events |
| External storage: | PC/Server/NAS | PC/Server/NAS |
| Article No.: | MX-c25-D016 MX-c25-D036 MX-c25-N016 |
MX-c25-D016-AUD |
| c26 | c26 AUD | |
| Indoors: | IP20, 0 to +40 °C/32 to 104 °F | IP20, 0 to +40 °C/32 to 104 °F |
| Lenses: (35 mm equivalent) |
B016 (180° x 180°) B036 (103° x 77°) |
B016 (180° x 180°) |
| Max. image size: | 6MP (3072×2048) | 6MP (3072×2048) |
| Image sensor: | 1/1.8″ CMOS sensor, 6MP (3072×2048), progressive scan | 1/1.8″ CMOS sensor, 6MP (3072×2048), progressive scan |
| Max. framerate: | 42@HD • 34@FullHD • 12@6MP | 42@HD • 34@FullHD • 12@6MP |
| Sensitivity: | Color 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s) B/W: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s) |
Color 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s) B/W: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s) |
| Interfaces: | Ethernet (MxRJ45), MiniUSB | Ethernet (MxRJ45), MiniUSB |
| Internal DVR: | MicroSD slot (4GB card pre-installed) | MicroSD slot (4GB card pre-installed) |
| Audio/Telephony: | Audio optional via ExtIO | With audio package (HD audio, integrated microphone, speaker) |
| Power supply: | Power over Ethernet (PoE nach IEEE802.3af): PoE class variable (2/3), according to operating mode; power consumption typ. 4 W |
Power over Ethernet (PoE nach IEEE802.3af): PoE class variable (2/3), according to operating mode; power consumption typ. 4 W |
| Software functions: | Intelligent video analysis • digital zoom • programmmabale exposure windows • single image recording • Full Featured Recording (MxFFS Archive, Continous Recoring, Full Image Recording) • Time and event driven • Week programs incl. public holidays • web functions • Logo generator • Linked event logic • Master/Slave activation • several time-driven privacy zones • Remote activation • program interface/HTTPAPI |
Intelligent video analysis • digital zoom • programmmabale exposure windows • single image recording • Full Featured Recording (MxFFS Archive, Continous Recoring, Full Image Recording) • Time and event driven • Week programs incl. public holidays • web functions • Logo generator • Linked event logic • Master/Slave activation • several time-driven privacy zones • Remote activation • program interface/HTTPAPI |
| Arming • Triggering: | 365-day schedule • multiple events | 365-day schedule • multiple events |
| External storage: | PC/Server/NAS | PC/Server/NAS |
| Article No.: | Mx-c26A-6D016 Mx-c26A-6D036 Mx-c26A-6N016 Mx-c26A-6N036 |
Mx-c26A-AU-6D016 Mx-c26A-AU-6N016 Mx-c26A-AU-6D036 Mx-c26A-AU-6N036 |
