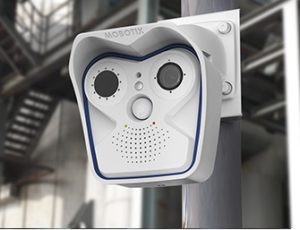

Dual. Modular. Unique.
True to the original: The weatherproof, robust successor to our successful MOBOTIX dual camera features interchangeable sensor modules as well as the latest MOBOTIX system technology. As a result, it remains totally unique in terms of performance, functionality and design.
- Modular system with exchangeable image sensors
- Weatherproof premium dual camera for all kinds of applications (IP66)
- Combined day/night camera for 24-hour use
- 6MP sensors with Moonlight Technology
- Including video motion detection software MxActivitySensor
Modular System Setup
The AllroundDual camera platform consists of three main components:
- Housing with integrated camera electronics, flash memory, external ports (Ethernet, MxBus – only M15 – and MiniUSB) and pre-installed VarioFlex mount for wall or ceiling mounting
- Front element to hold one or two sensor modules, with microphone, speaker, passive infrared sensor (PIR), outside temperature sensor and status LEDs
- One or two sensor modules with lens, image sensor, microphone and status LEDs
The AllroundDual body module comes with VarioFlex mount, connection cables for sensor modules and network, and the front element. The sensor modules, which need to be ordered separately, are pre-focused at the factory and can be supplied in any desired combination of day or night sensors with lens choices from telephoto to wide angle. The modular system, which provides maximum flexibility when configuring the camera, is also easily reconfigured or repaired by replacing a sensor module.
| M15 Body | M15 Complete | |
| Indoor/Outdoor: | In/Outdoor, weatherproof (IP66), -30…+60 °C Protection class IK07 |
In/Outdoor, weatherproof (IP66), -30…+60 °C Protection class IK07 |
| Sensor modules: (äquivalent mm Kleinbild) |
Camera body for 1 or 2 sensor modules: B016 – B500, horizontal angle 180° to 8° or CSVario, 39° – 29°, 5MP or 6MP |
Complete camera: B041 (L22) • day/night • 90° or B079 (L43) day/night • 45° |
| Max. image size: | with 2 x 5MP sensor modules: 4096 x 1536 (6.2 MEGA) with 2 x 6MP sensor modules: 6144 x 2048 (12.5 MEGA) |
2 x 6MP sensor modules: 6144 x 2048 (12.5 MEGA) |
| Zoom/Pan: | Continuous up to 8x Zoom + Pan/Tilt (digital) | Continuous up to 8x Zoom + Pan/Tilt (digital) |
| Max. frame rate: | 30@HD • 20@FullHD (1920 x 1080) • 8@6MP, 4@2x 6MP | 30@HD • 20@FullHD (1920 x 1080) • 8@6MP, 4@2x 6MP |
| Min. light sensitivity: | 5MP Day: 0.25 lux (t=1/60s) • 0.013 lux (t=1/1s) 5MP Night: 0.05 lux (t=1/60s) • 0.0025 lux (t=1/1s) 6MP Day: 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s) 6MP Night: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s) |
Day: 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s) Night: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s) |
| Interfaces: | Ethernet 10/100 Mbit, MiniUSB, MxBus, In/Out and RS232 with accessories |
Ethernet 10/100 Mbit, MiniUSB, MxBus, In/Out and RS232 with accessories |
| Internal DVR: [MB] |
MicroSD card (4 GB card pre-installed) | MicroSD card (4 GB card pre-installed) |
| Audio functions | Microphone and speaker integrated, lip-synchronous audio, two-way speaker, audio recording | Microphone and speaker integrated, lip-synchronous audio, two-way speaker, audio recording |
| Power supply: | PoE (IEEE 802.3af/t) • PoE-Klasse variable • typ. 5.0 W | PoE (IEEE 802.3af/t) • PoE-Klasse variable • typ. 5.0 W |
| Alarm/Ereignisse: | VideoMotion, MxActivitySensor, external signals, temperature sensor, PIR, microphone, shock detector, notification via eMail, FTP, telephony (VoIP, SIP), visual/acoustis alarm, pre- and post-alarm images | VideoMotion, MxActivitySensor, external signals, temperature sensor, PIR, microphone, shock detector, notification via eMail, FTP, telephony (VoIP, SIP), visual/acoustis alarm, pre- and post-alarm images |
| Flexible event logic: | MxPEG, MJPEG | MxPEG, MJPEG |
| External storage: | On PC/Server/NAS | On PC/Server/NAS |
| Article No.: | MX-M15D-SEC | MX-M15D-Sec-DNight-D22N22-6MP-F1.8 MX-M15D-Sec-DNight-D43N43-6MP-F1.8 |
| M16 Body | M16 Complete | |
| Indoor/Outdoor: | In/Outdoor, weatherproof (IP66), -30…+60 °C Protection class IK07 |
In/Outdoor, weatherproof (IP66), -30…+60 °C Protection class IK07 |
| Sensor modules: (äquivalent mm Kleinbild) |
Camera body for 1 or 2 sensor modules: B016 – B500, horizontal angle 180° to 8° or CSVario, 39° – 29°, 5MP or 6MP |
Complete camera with 2 sensor modules: B041 • day/night • 90° or B079 • day/night • 45° |
| Max. image size: | with 2 x 5MP sensor modules: 4096 x 1536 (6.2 MEGA) with 2 x 6MP sensor modules: 6144 x 2048 (12.5 MEGA) |
2 x 6MP sensor modules: 6144 x 2048 (12.5 MEGA) |
| Zoom/Pan: | Continuous up to 8x Zoom + Pan/Tilt (digital) | Continuous up to 8x Zoom + Pan/Tilt (digital) |
| Max. frame rate: | 42@HD • 34@FullHD • 12@6MP • 6@2x 6MP | 42@HD • 34@FullHD • 12@6MP • 6@2x 6MP |
| Min. light sensitivity: | 5MP Day: 0.25 lux (t=1/60s) • 0.013 lux (t=1/1s) 5MP Night: 0.05 lux (t=1/60s) • 0.0025 lux (t=1/1s) 6MP Day: 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s) 6MP Night: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s) |
Day: 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s) Night: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s) |
| Interfaces: | Ethernet 10/100 (RJ45), USB; IO and RS232 via additional MxInterface Box |
Ethernet 10/100 (RJ45), USB; IO and RS232 via additional MxInterface Box |
| Internal DVR: [MB] |
MicroSD card (4 GB card pre-installed) | MicroSD card (4 GB card pre-installed) |
| Audio functions | Microphone and speaker integrated, lip-synchronous audio, two-way speaker, audio recording | Microphone and speaker integrated, lip-synchronous audio, two-way speaker, audio recording |
| Power supply: | PoE (IEEE 802.3af/t) • PoE-Klasse variable • typ. 5.0 W | PoE (IEEE 802.3af/t) • PoE-Klasse variable • typ. 5.0 W |
| Alarm/Ereignisse: | VideoMotion, MxActivitySensor, external signals, temperature sensor, PIR, microphone, notification via eMail, FTP, telephony (VoIP, SIP), visual/acoustis alarm, pre- and post-alarm images | VideoMotion, MxActivitySensor, external signals, temperature sensor, PIR, microphone, notification via eMail, FTP, telephony (VoIP, SIP), visual/acoustis alarm, pre- and post-alarm images |
| Flexible event logic: | MxPEG, MJPEG, H.264 | MxPEG, MJPEG, H.264 |
| External storage: | On PC/Server/NAS | On PC/Server/NAS |
| Article No.: | MX-M16A | MX-M16A-6D6N041 MX-M16A-6D6N079 |
